Corner door hinge package

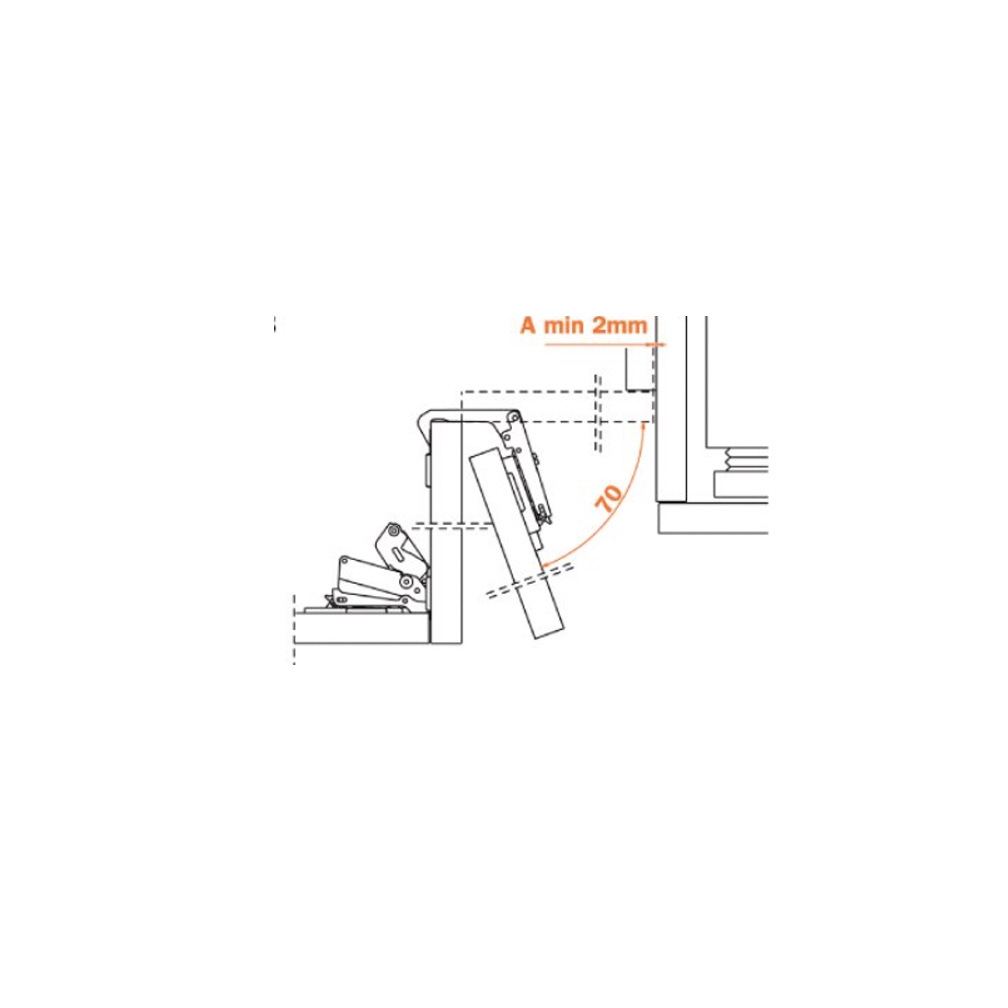

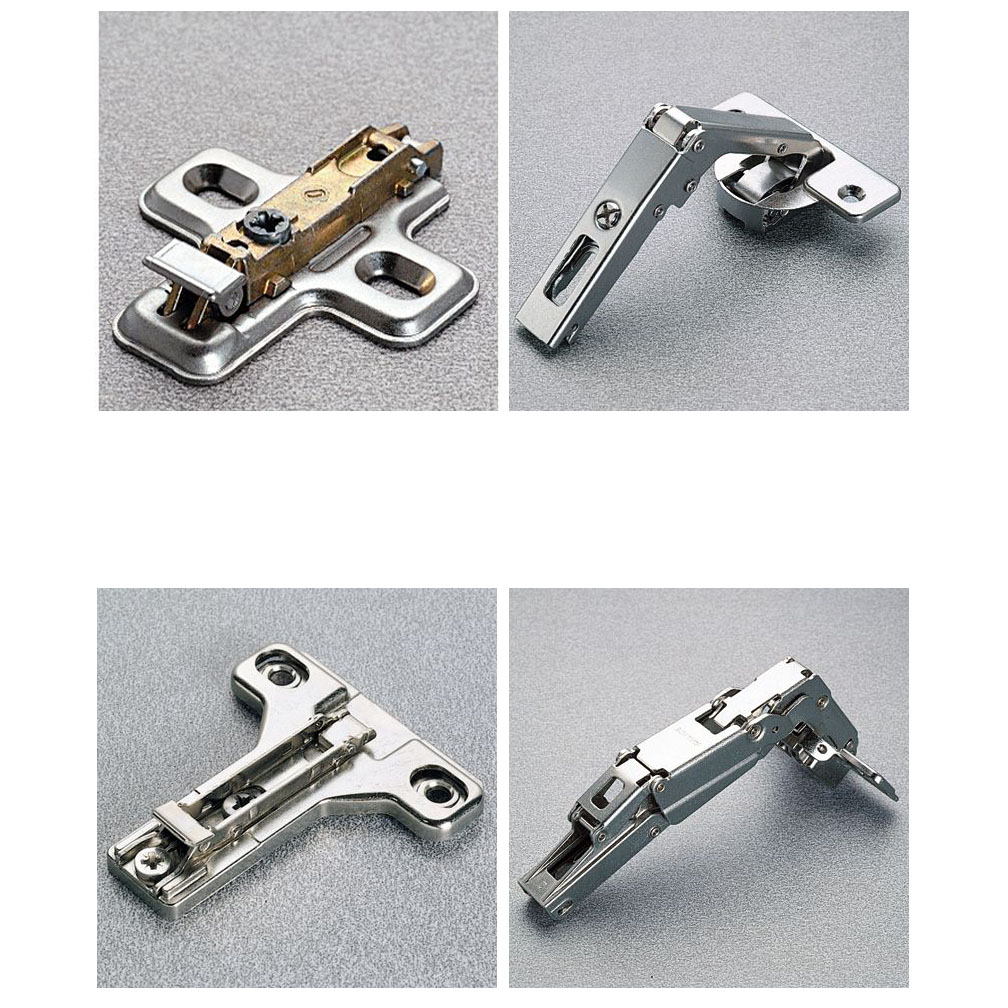

This Salice corner door hinge package allows you to have a bi-fold door for lazy susans or easy corner cabinet access. It consists of four hinges and a mounting plate for each hinge.

Hinge mounting instructions:

For 1/2″ overlays: For mounting the first door (hinge side) to the cabinet box use hinge SAC2PFD99 and mounting plate SABAU3R19. For mating the second door (pull side) to the first door, use hinge SAC2PYA99 and mounting plate SABAV3M39F – this mounting plate should be installed 1 1/8″ from door edge to screw center.

For 3/4″ overlays: For mounting the first door (hinge side) to the cabinet box use hinge SAC2PFA99 and mounting plate SABAV3M09F. For mating the second door (pull side) to the first door, use hinge SAC2PYA99 and mounting plate SABAV3M39F – this mounting plate should be installed 1 1/8″ from door edge to screw center.

Additional features:

• Concealed hinge
• 165° opening angle
• Self-close
• Limited Lifetime Warranty

Discounted Quantity Pricing (shown in cart):

• 1: $39.00
• 2+: $39.00 $36.00
